MUBEEN TRADERS

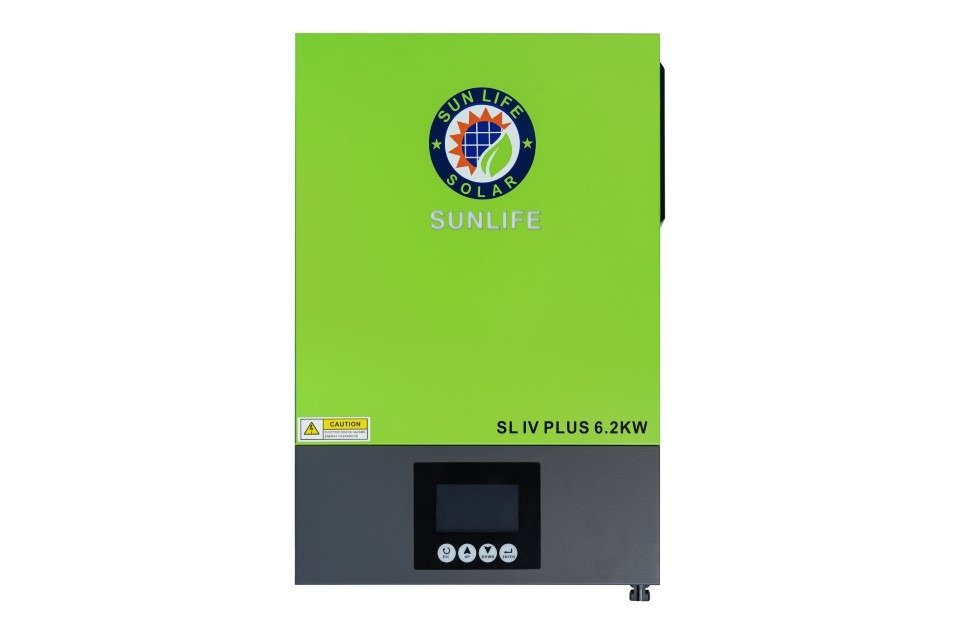

SUNLIFE SL IV PLUS 6.2KW | Powerful Hybrid 6.2KW Solar Inverter for Home & Business Use
SUNLIFE SL IV PLUS 6.2KW | Powerful Hybrid 6.2KW Solar Inverter for Home & Business Use
Regular price
Rs.125,000.00
Regular price
Rs.130,000.00
Sale price
Rs.125,000.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Technical Specifications – SUNLIFE SL IV PLUS 6.2KW
| Feature | Specification |
|---|---|
| Model | SUNLIFE SL IV PLUS 6.2KW |
| Rated Power | 6200W (6.2KW) |
| Inverter Type | Hybrid (Supports Grid-Tied and Off-Grid Modes) |
| Battery Support | Yes (48V DC system, optional use) |
| PV Input Voltage Range | 120V – 500V DC |
| MPPT Voltage Range | 120V – 500V DC |
| MPPT Efficiency | ≥ 99.5% |
| Overall Efficiency | ≥ 96% |
| AC Output Voltage | 230V AC ± 5% (Single Phase) |
| Output Frequency | 50Hz / 60Hz Auto-Detect |
| Surge Capacity | Up to 2x rated power (e.g., 12.4KW for a few secs) |
| Display | LCD Display + LED Status Indicators |
| Monitoring Interface | RS485 / Wi-Fi (App Monitoring Optional) |
| Protection Features | Overload, Short Circuit, Overvoltage, Overheat |
| Cooling System | Smart Fan Cooling |
| Communication Ports | USB, RS232/485, Dry Contacts (depending on model) |
| Installation | Wall-Mountable / Indoor Use |
| Operating Temperature | -10°C to +50°C |
| Dimensions (LxWxH) | Approx. 450 x 320 x 130 mm (varies by supplier) |
| Weight | Approx. 16–20 kg |
| Warranty | ____ Years (Check with supplier) |
